Creates a TIN using the Hierarchical point set simplification algorithm. More...

#include <tin_creation_simplification_point_set_hierarchy.h>

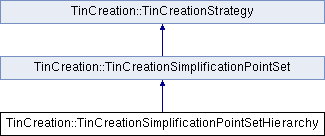

Inheritance diagram for TinCreation::TinCreationSimplificationPointSetHierarchy:

Public Member Functions
	TinCreationSimplificationPointSetHierarchy (double borderSimplificationMaxDistance, double borderSimplificationMaxLength, unsigned int minFeaturePolylineSize, unsigned int maxClusterSize, double maxSurfaceVariance)

	TinCreationSimplificationPointSetHierarchy (const std::vector< double > &borderSimplificationMaxDistancePerZoom, const std::vector< double > &borderSimplificationMaxLengthPerZoom, unsigned int minFeaturePolylineSize, const std::vector< unsigned int > &maxClusterSizePerZoom, const std::vector< double > &maxSurfaceVariancePerZoom)

std::vector< Point_3 >	simplify (const std::vector< Point_3 > &pts)

void	setParamsForZoomConcreteStrategy (const unsigned int &zoom)

Public Member Functions inherited from TinCreation::TinCreationSimplificationPointSet
	TinCreationSimplificationPointSet (double borderSimplificationMaxDistance, double borderSimplificationMaxLengthPercent, unsigned int minFeaturePolylineSize)

	TinCreationSimplificationPointSet (const std::vector< double > &borderSimplificationMaxDistance, const std::vector< double > &borderSimplificationMaxLengthPercent, unsigned int minFeaturePolylineSize)

Polyhedron	create (const std::vector< Point_3 > &dataPts, const bool &constrainEasternVertices, const bool &constrainWesternVertices, const bool &constrainNorthernVertices, const bool &constrainSouthernVertices)
	Create a TIN from a set of points. More...

void	setParamsForZoom (const unsigned int &zoom)
	Adapts the parameters of the algorithm for the desired zoom level. More...

Public Member Functions inherited from TinCreation::TinCreationStrategy
	TinCreationStrategy ()
	Constructor.

void	setScaleZ (const double &scale)

double	getScaleZ ()
	Get the scale in Z.

void	setBounds (const double &minX, const double &minY, const double &minZ, const double &maxX, const double &maxY, const double &maxZ)

double	getMinX () const
	Get the minimum X coordinate.

double	getMinY () const
	Get the minimum Y coordinate.

double	getMinZ () const
	Get the minimum Z coordinate.

double	getMaxX () const
	Get the maximum X coordinate.

double	getMaxY () const
	Get the maximum Y coordinate.

double	getMaxZ () const
	Get the maximum Z coordinate.

bool	hasOriginalBoundingBox () const

std::vector< Point_3 >	convertUVHToECEF (const std::vector< Point_3 > &pts) const
	Convert points to ECEF assuming that they are on a UVH format, and given the limits of the tile.

std::vector< Point_3 >	convertECEFToUVH (const std::vector< Point_3 > &pts) const
	Convert points from local UVH to ECEF given the limits of the tile.

Point_3	convertUVHToECEF (const Point_3 &p) const
	Convert points to ECEF assuming that they are on a UVH format, and given the limits of the tile.

Point_3	convertECEFToUVH (const Point_3 &p) const
	Convert points from local UVH to ECEF given the limits of the tile.

Detailed Description

Creates a TIN using the Hierarchical point set simplification algorithm.

It uses CGAL's implementation of the method described in:
Mark Pauly, Markus Gross, and Leif P Kobbelt. Efficient simplification of point-sampled surfaces. In Proceedings of the conference on Visualization'02, pages 163–170. IEEE Computer Society, 2002.

Constructor & Destructor Documentation

◆ TinCreationSimplificationPointSetHierarchy() [1/2]

TinCreation::TinCreationSimplificationPointSetHierarchy::TinCreationSimplificationPointSetHierarchy	(	double	borderSimplificationMaxDistance,
		double	borderSimplificationMaxLength,
		unsigned int	minFeaturePolylineSize,
		unsigned int	maxClusterSize,
		double	maxSurfaceVariance
	)

inline

Constructor

Parameters

borderSimplificationMaxDistance	Maximum error for polyline simplification
borderSimplificationMaxLengthPercent	Maximum length for an edge in the simplified polyline. This prevents oversimplification in planar tiles.
minFeaturePolylineSize	Minimum number of connected edges in a sharp feature polyline to consider it during processing
maxClusterSize	Maximum cluster size
maxSurfaceVariance	Maximum cluster variation value

◆ TinCreationSimplificationPointSetHierarchy() [2/2]

TinCreation::TinCreationSimplificationPointSetHierarchy::TinCreationSimplificationPointSetHierarchy	(	const std::vector< double > &	borderSimplificationMaxDistancePerZoom,
		const std::vector< double > &	borderSimplificationMaxLengthPerZoom,
		unsigned int	minFeaturePolylineSize,
		const std::vector< unsigned int > &	maxClusterSizePerZoom,
		const std::vector< double > &	maxSurfaceVariancePerZoom
	)

inline

Constructor

Parameters

borderSimplificationMaxDistance	Maximum error for polyline simplification per zoom
borderSimplificationMaxLengthPercent	Maximum length for an edge in the simplified polyline per zoom. This prevents oversimplification in planar tiles.
minFeaturePolylineSize	Minimum number of connected edges in a sharp feature polyline to consider it during processing
maxClusterSize	Maximum cluster size per zoom
maxSurfaceVariance	Maximum cluster variation value per zoom

Member Function Documentation

◆ setParamsForZoomConcreteStrategy()

void TinCreation::TinCreationSimplificationPointSetHierarchy::setParamsForZoomConcreteStrategy ( const unsigned int & zoom )

inlinevirtual

Same as setParamsForZoom, but triggered at each child class

Parameters

zoom	Current zoom level

Implements TinCreation::TinCreationSimplificationPointSet.

◆ simplify()

std::vector< Point_3 > TinCreation::TinCreationSimplificationPointSetHierarchy::simplify ( const std::vector< Point_3 > & pts )

virtual

Simplifies a point set

Parameters

pts	Points to simplify

Returns: Simplified point set

Implements TinCreation::TinCreationSimplificationPointSet.

The documentation for this class was generated from the following files:

/mnt/Raid1Ext/EMODNET/Code/src/tin_creation/tin_creation_simplification_point_set_hierarchy.h
/mnt/Raid1Ext/EMODNET/Code/src/tin_creation/tin_creation_simplification_point_set_hierarchy.cpp
